Spinergy wheels explained: Rev-X controversy, the UCI rules and PBO wheels today

Spinergy is one of those cycling brands whose name still immediately brings to mind a product from another era. The original Rev-X wheels were impossible to ignore: broad carbon blades, a futuristic silhouette and a distinctive sound that made them look unlike anything else in the professional peloton of the 1990s.

The story did not end when Rev-X disappeared. Spinergy is still making bicycle wheels in 2026, but the technology has changed completely. Modern Spinergy road, gravel and mountain-bike wheels use conventional spoke layouts built around the company’s PBO fibre spokes, with tubeless-ready rims, disc-brake options and current axle and freehub standards.

Photo Credit: Spinergy

What were Spinergy Rev-X wheels?

Spinergy entered the bicycle market in the early 1990s with the Rev-X, a carbon wheel that replaced a normal set of wire spokes with four broad paired carbon blades. Viewed from the side, that created the familiar eight-spoke appearance that became one of the defining pieces of cycling technology of the decade.

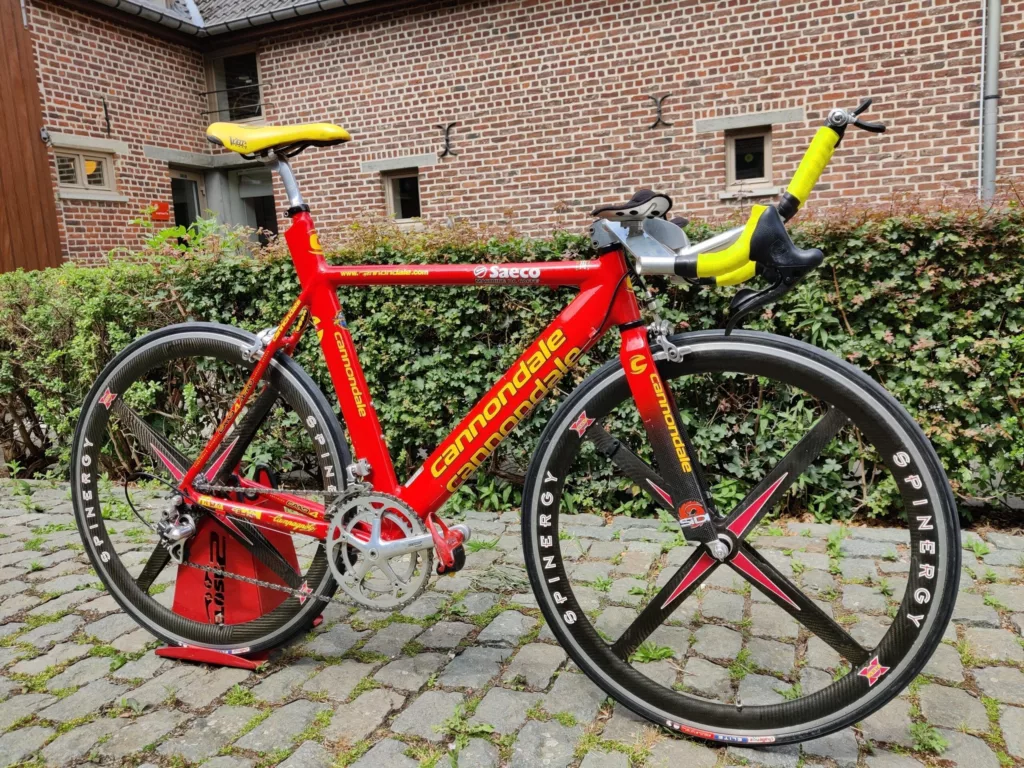

The concept was immediately attractive to racers. Carbon-fibre wheel technology was still developing quickly, aerodynamic equipment was becoming more visible in professional cycling and the Rev-X looked genuinely different. Spinergy founder Rafe Schlanger had previously worked at Cannondale, and the wheels became closely associated with Cannondale-equipped teams.

Mario Cipollini and the Saeco team gave the wheels some of their highest-profile exposure. On Cipollini’s famously coordinated bikes and kits, Rev-X fitted the period perfectly: fast-looking, unconventional and visually unmistakable.

Why did Spinergy Rev-X become controversial?

The same design that made Rev-X distinctive also attracted scrutiny. The wheel had far fewer structural elements than a conventional spoked wheel, and its wide carbon blades raised questions about what happened during a heavy impact or a pile-up.

There were concerns about structural failure, the behaviour of the blades in crashes and the stiffness of composite wheels. Some of the most dramatic stories attached to Rev-X have been repeated so often that separating documented incidents from cycling folklore is difficult, but the wider issue was real: the UCI was increasingly uncomfortable with unconventional wheel designs that could not be assessed in the same way as traditional wheels.

Were Spinergy Rev-X wheels banned by the UCI?

Yes, but the timeline is more complicated than the simple claim that “the UCI banned Rev-X in 1997”. That date is widely repeated, yet the regulatory process stretched across several years.

The UCI was raising concerns about unconventional wheel designs during the late 1990s. By the time revised wheel rules and a rupture test were introduced around 2001, wheels with very low spoke counts or deep structural sections had to satisfy specific impact requirements. Rev-X could not meet the test, which effectively ended its use in UCI road competition.

That distinction matters because the wheels were not simply outlawed overnight because of one notorious crash. Rev-X became caught by a tightening set of technical regulations designed to give the governing body a repeatable safety test for non-traditional wheels.

Why did Spinergy stop making Rev-X?

Once the Rev-X design no longer fitted the direction of UCI equipment rules, its future as a performance racing product was limited. The wheel was retired, but Spinergy did not disappear with it. Instead, the company moved towards a very different spoke technology that remains the defining feature of its wheelsets today.

That shift is why modern Spinergy wheels should not be treated as updated versions of Rev-X. The visual connection is minimal and the structural approach is completely different. Current models use individual tensioned spokes, much closer in layout to a conventional bicycle wheel, but make those spokes from PBO fibre rather than steel.

Photo Credit: Spinergy

What are Spinergy PBO spokes?

PBO stands for poly(p-phenylene-2,6-benzobisoxazole), a high-strength synthetic fibre. Spinergy bundles thousands of individual fibres into each spoke and covers them with a protective outer layer, creating a flexible tensioned spoke rather than a rigid carbon blade.

Spinergy says the material provides roughly three times the strength of stainless steel at around half the weight. The more interesting claim for normal riding is the way the spokes can absorb some vibration rather than transmitting every small impact through a conventional metal spoke.

That ride-quality argument has become central to modern Spinergy wheels, particularly on gravel and endurance models. It also gives the company something genuinely different in a market where most competing wheels use carbon or aluminium rims built around steel spokes.

Are modern Spinergy wheels UCI legal?

Current Spinergy models are a completely separate proposition from Rev-X. Spinergy’s present road and gravel product pages identify wheelsets such as the FCC 32, GX and GX32 as UCI approved, using conventional spoke counts and current hub standards.

That is one of the biggest misconceptions created by the Rev-X story. The historical controversy does not mean Spinergy as a brand remains banned or that its present wheels are inherently non-compliant. The restriction applied to the old wheel design and the technical rules it failed to satisfy.

Photo Credit: Spinergy

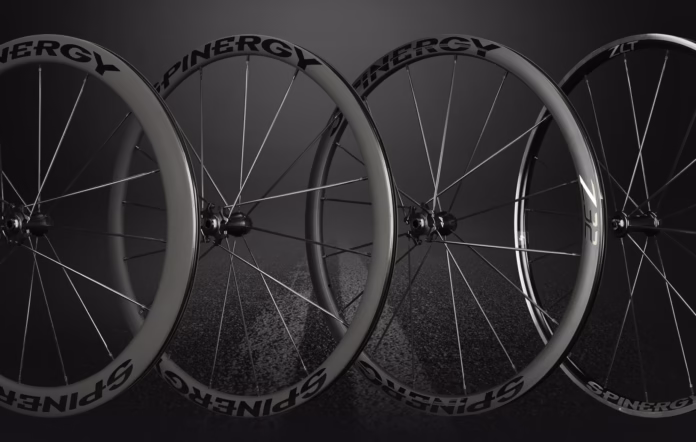

What Spinergy wheels are available in 2026?

The 2026 range stretches well beyond road racing. Spinergy currently lists dedicated road, gravel, mountain-bike, e-bike and tandem wheels, as well as a substantial wheelchair division.

The range also includes Powershift versions built around Classified’s internally geared rear-hub system. That is a useful reminder that Spinergy is still willing to adopt unusual technology, even if the modern products look far more conventional than Rev-X.

How modern Spinergy wheels compare with the 1990s design

The contrast is stark. Rev-X concentrated much of the wheel’s structure into a handful of broad carbon blades. Modern Spinergy wheels spread loads through conventional spoke patterns, with 16 or more spokes on road models and 24 or more on most gravel and mountain-bike wheels.

Rim technology has changed as well. Current models include tubeless compatibility, wider internal widths for modern tyres, centre-lock disc interfaces and through-axle support. The company also offers a wide choice of freehub bodies and spoke colours, which means the current range is aimed as much at gravel and everyday performance riding as it is at racing.

That mirrors a wider change in high-end wheels. Modern designs are no longer judged solely on weight and aerodynamics; tyre width, tubeless setup, braking system and ride quality have become just as important. Our guide to Roval wheels shows how another major wheel brand has evolved through the same shift in priorities.

Can you still ride old Spinergy Rev-X wheels?

Surviving Rev-X wheels have become collectable pieces of 1990s cycling equipment, but any wheel from that period is now decades old. Carbon condition, bonding, impact history and storage all matter, and there is no sensible way to judge structural condition purely from how clean a used wheel looks in an advert.

For display, a period-correct restoration or a retro build, Rev-X still has huge visual appeal. For regular fast riding, particularly in a group, the age and uncertain history of individual wheels make professional inspection essential. They also remain unsuitable for UCI competition under the technical rules that replaced the freer equipment environment of the 1990s.

Why Spinergy Rev-X still matters

Rev-X remains memorable because it arrived at a point when cycling equipment was changing extremely quickly. Carbon construction, radical frame shapes and increasingly aggressive aerodynamic ideas were moving from time-trial experimentation into mainstream professional racing.

Some of those ideas became normal. Others, like Rev-X, ran into rules, safety concerns or newer designs that solved the same problem in a different way. That does not make the wheel irrelevant. It makes it one of the clearest examples of how cycling technology evolves through experimentation as well as success.

Modern race bikes now use equipment that would have looked just as unusual in the early 1990s, from electronic shifting to deep tubeless carbon wheels and fully integrated cockpits. The cost of that technology has risen with it, as our guide to how much a Tour de France bike costs shows.

Spinergy in 2026

Spinergy today is not surviving on nostalgia. Its current identity is built around PBO spokes, road and gravel wheelsets, mountain-bike products and adaptive-sport wheels rather than another attempt to recreate Rev-X.

That makes the brand’s history more interesting than a simple rise-and-fall story. Rev-X made Spinergy famous, controversy changed the direction of its bicycle products, and the company then built a different technology around fibre spokes that is still in production more than three decades after the original wheel appeared.
